A modern, wall mounted umbrella is like nothing else...
Built with high performance, marine grade materials & designed with aesthetic & functionality at front of mind.
The Retreat features patented technology that redefines what a allows you to tilt, rotate & extend the umbrella so that you can
maximise your shade as the sun moves throughout the day! This clever shade solution is the perfect addition to compact spaces. A

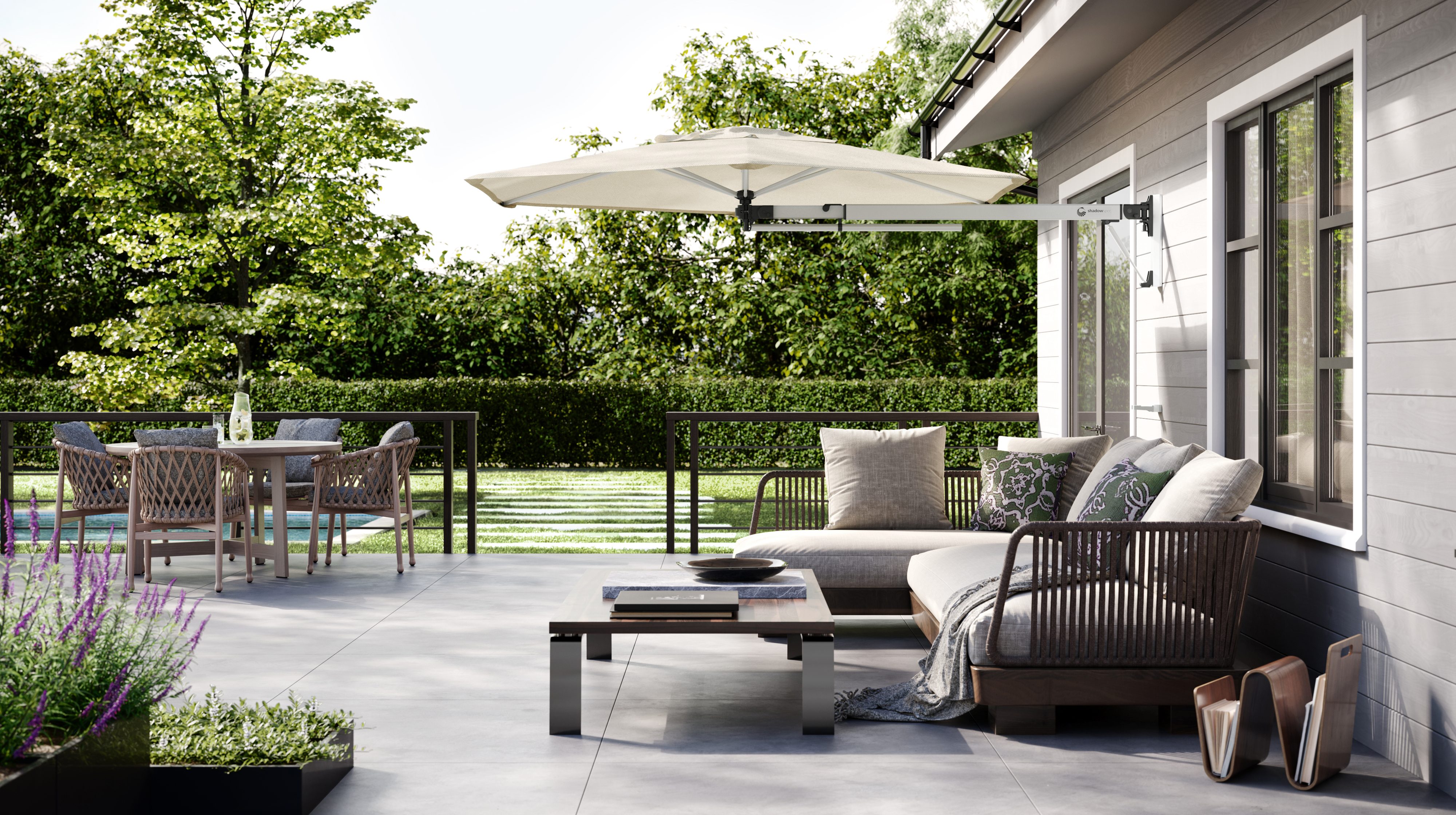

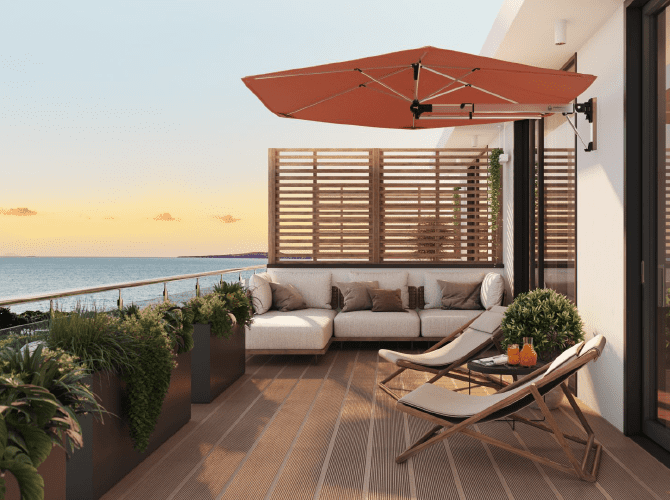

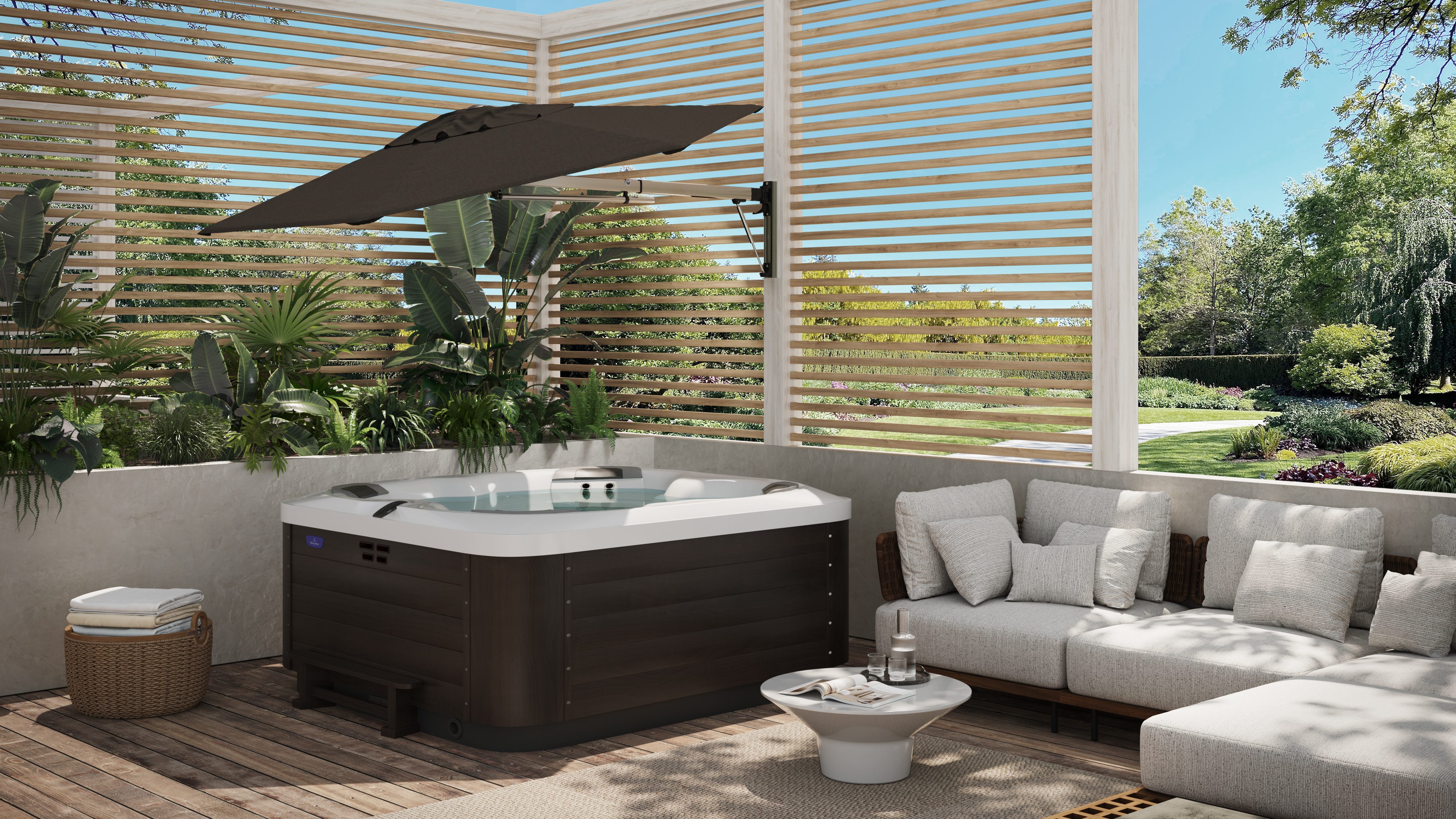

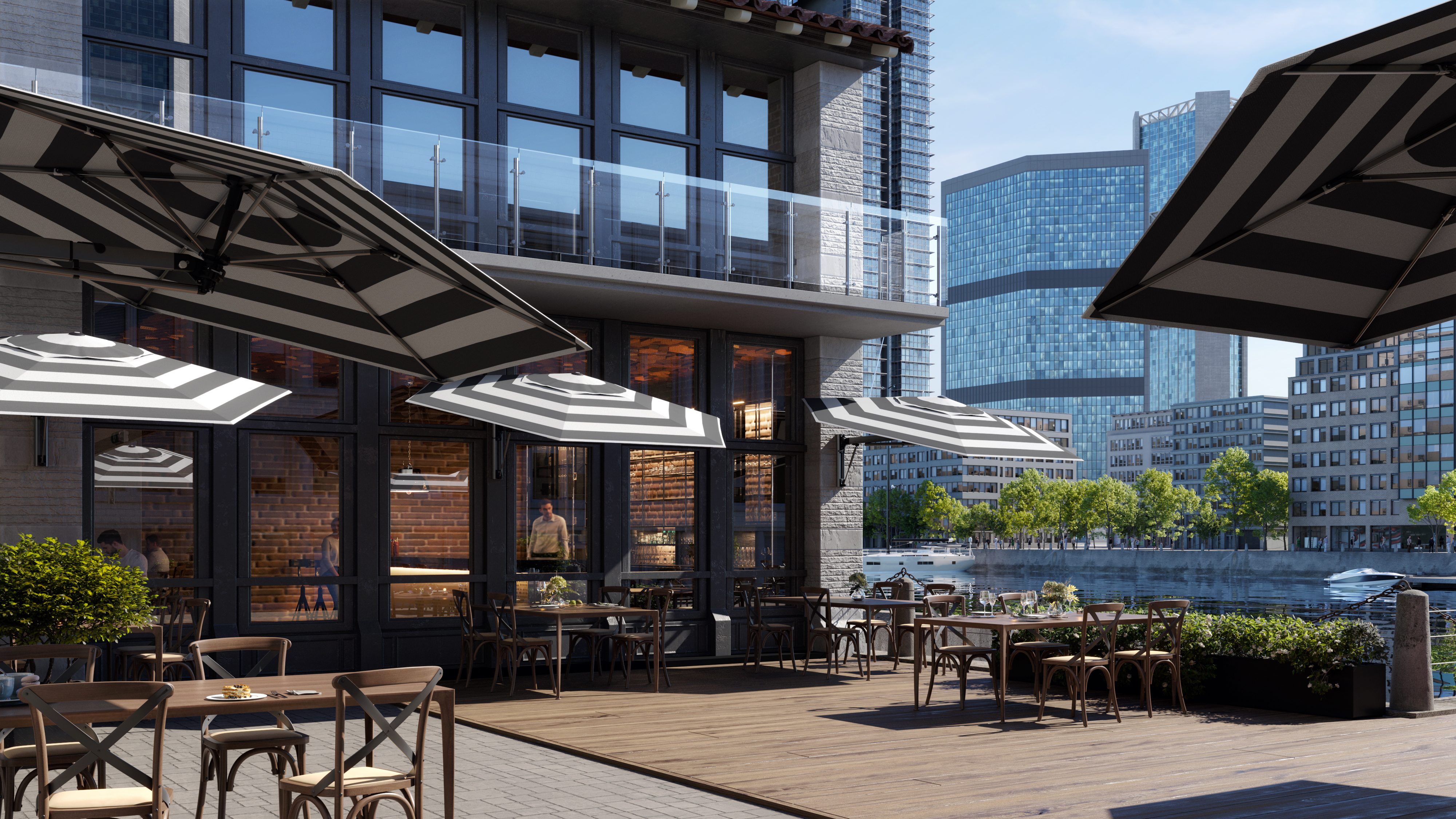

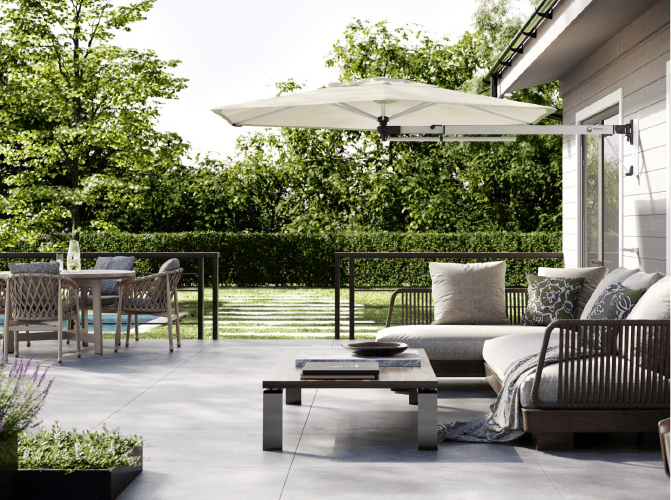

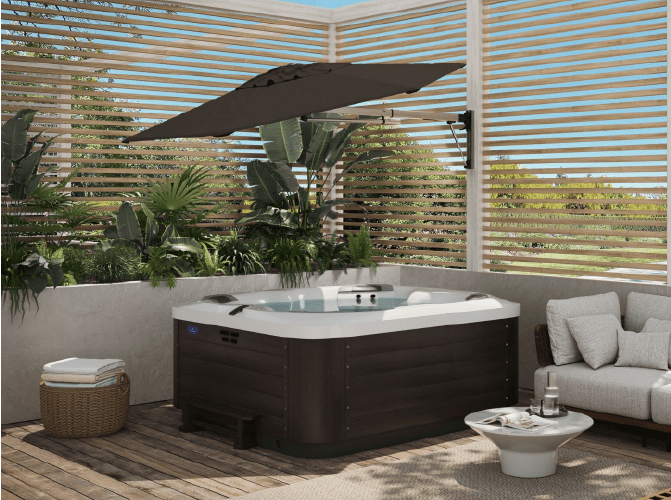

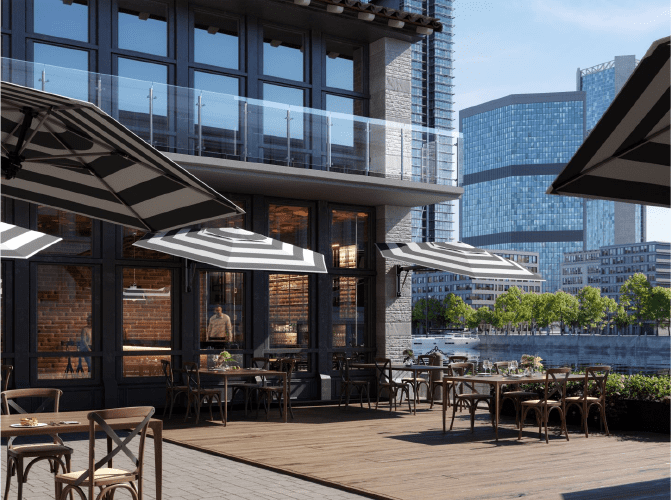

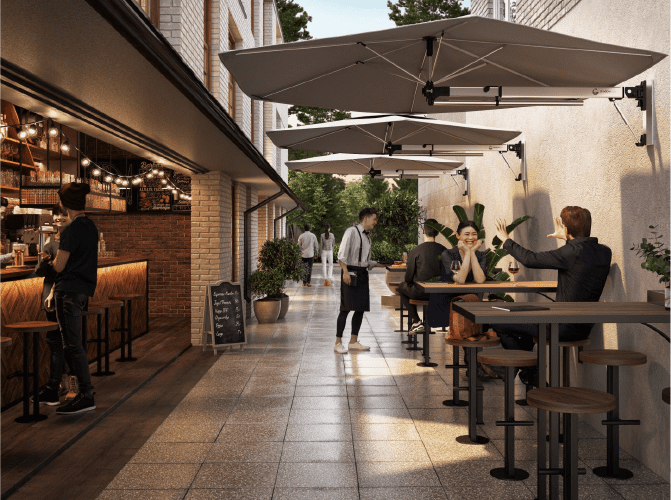

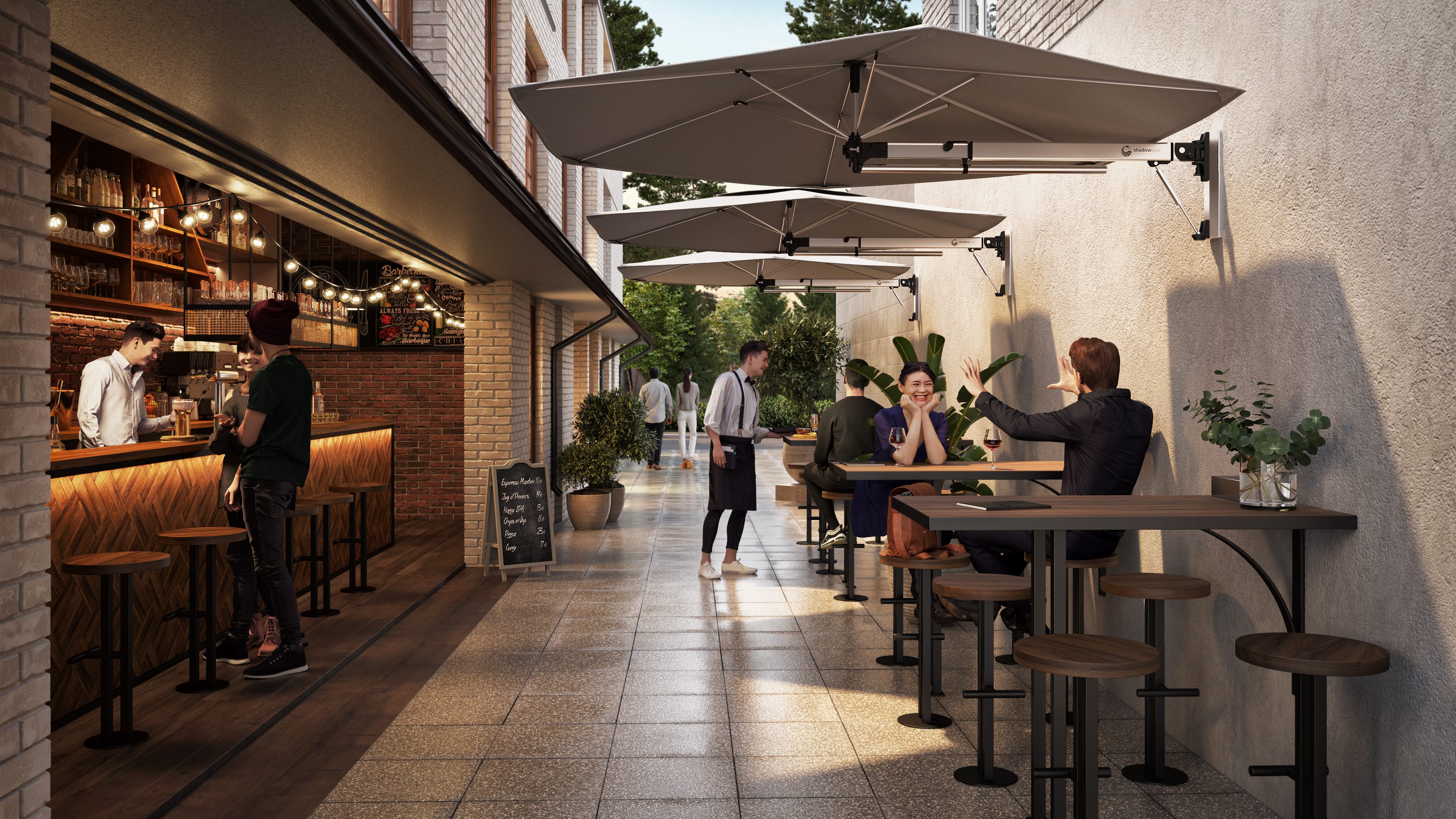

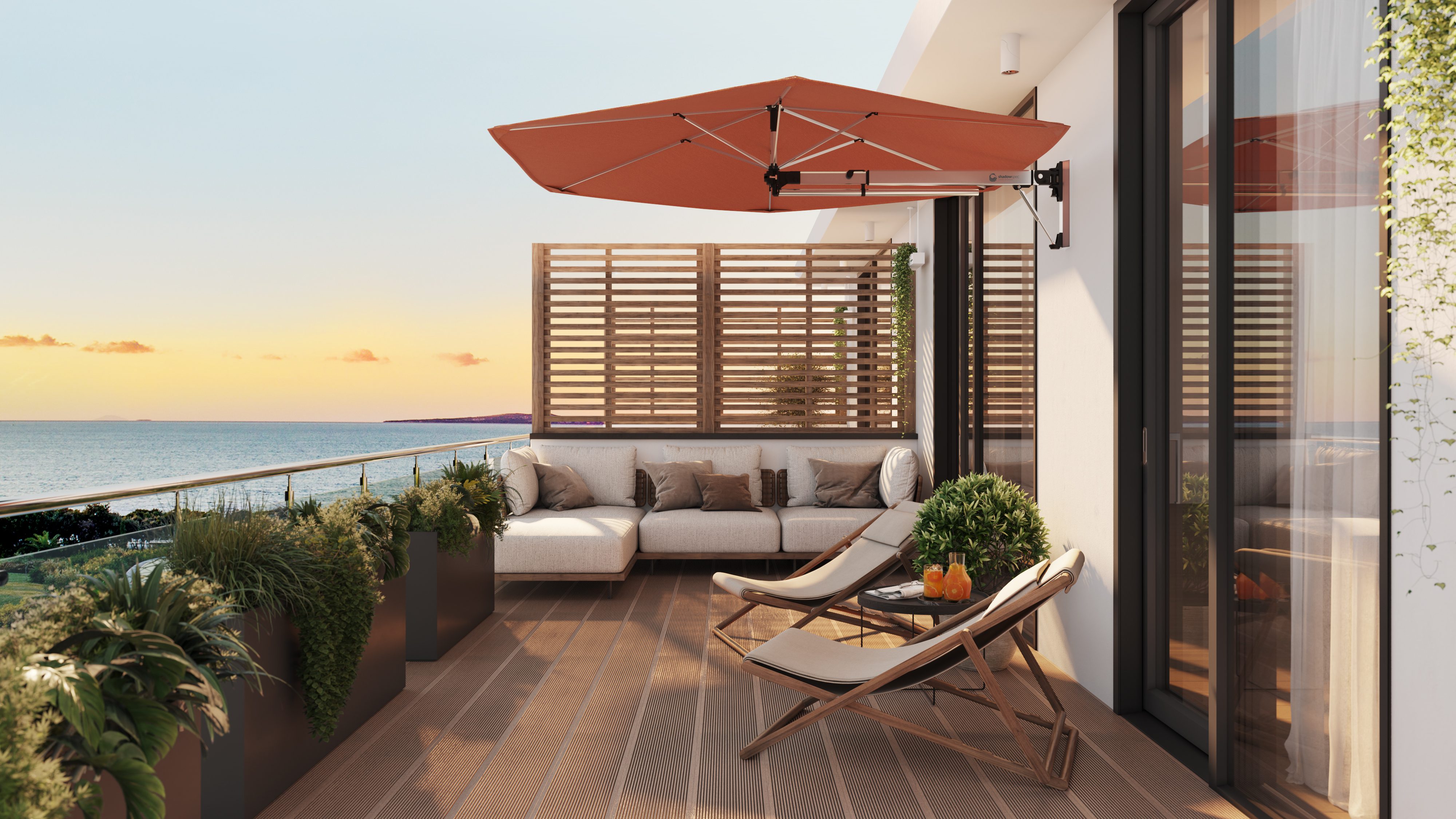

highly sought after shade solution for residential balconies, patios, & spas areas as well as alfresco cafes & restaurants.
⭐ Expertly designed for maximum shade with minimal footprint
⭐ Anodised aluminium frame with marine grade 316 stainless steel components
⭐ Solution-dyed, fade resistant canopy with a UPF 80 rating
⭐ Tilts, rotates & extends for maximum versatility
⭐ Exclusive patented technology that makes this a one-of-a-kind umbrella
⭐ Fabric storage cover included
3 Year Fabric Warranty
3 Year Frame Warranty
Watch the video & see for yourself
Click the images below to enlarge

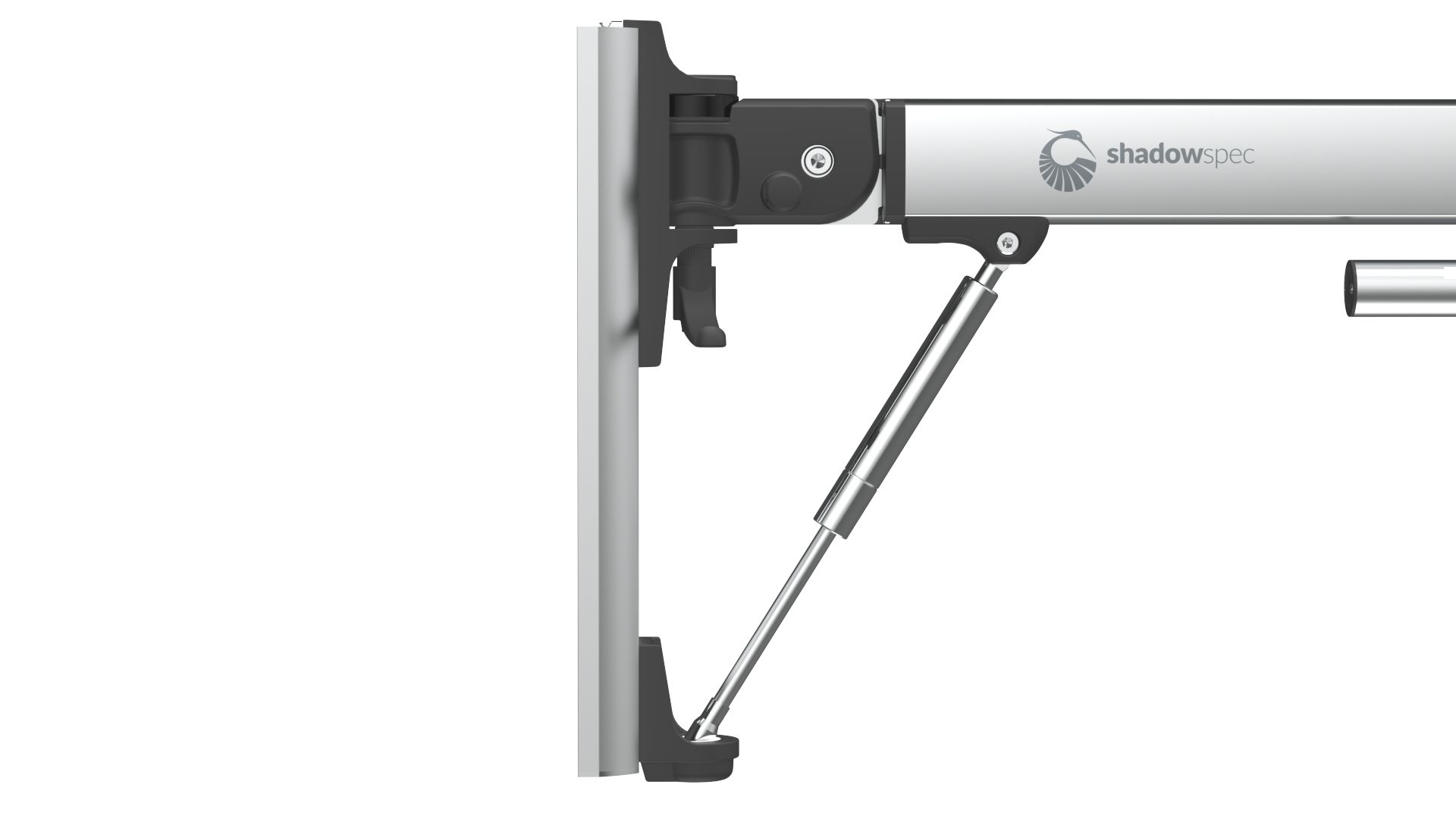

Gas-assisted, make every deployment easy

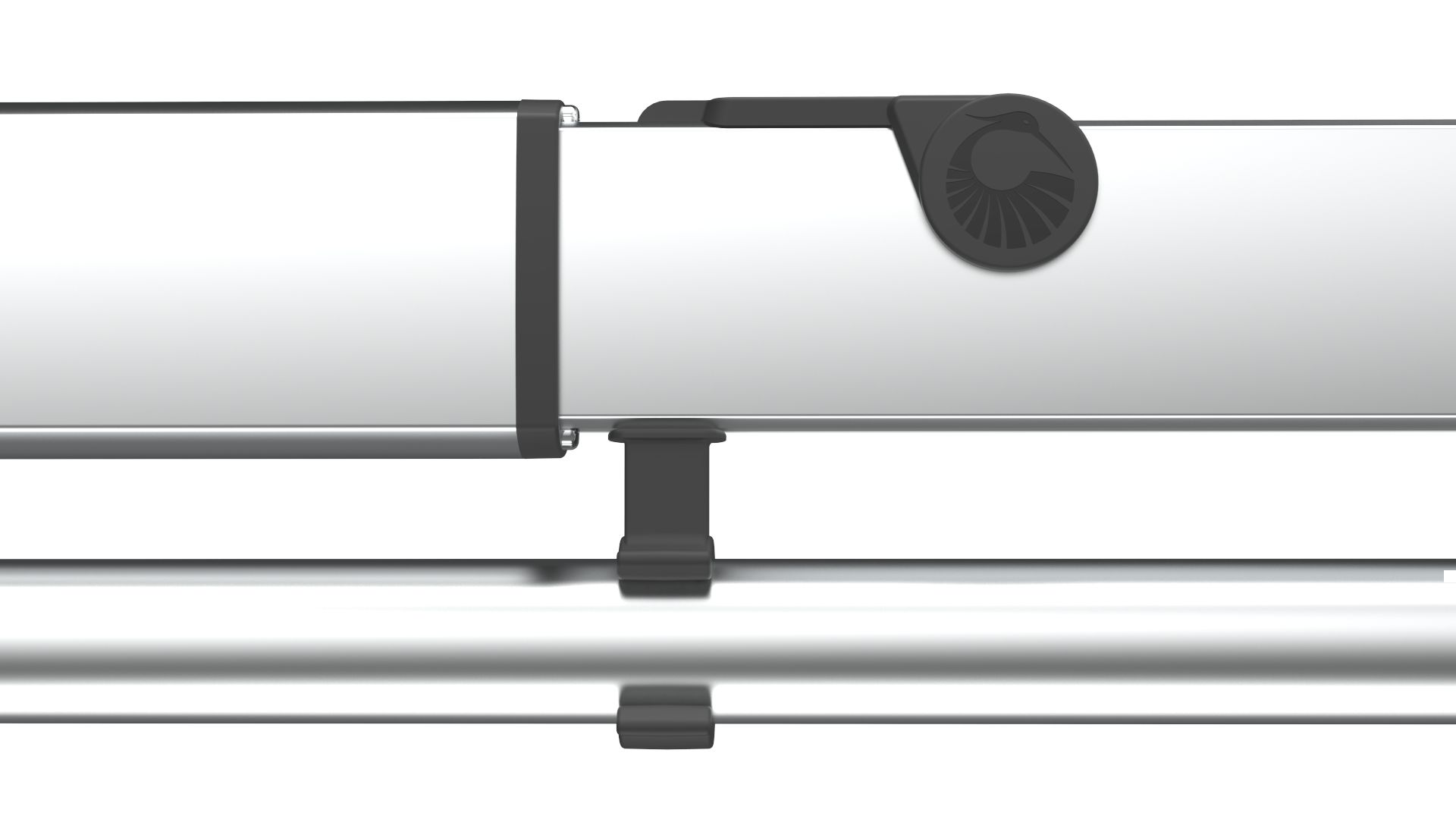

Integrated roller allows smooth deployment
Shade for all sun positions throughout the day
Shade for all sun positions throughout the day
(Click to enlarge)
2.3m Depth (Extendable)

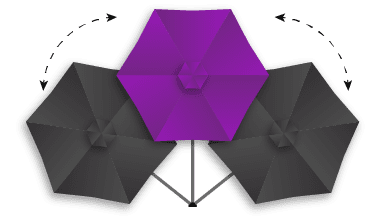

Rotates
Allows shade for the duration of the day.

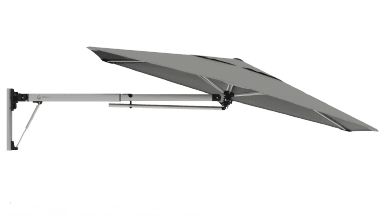

Tilts
Two tilt positions to protect when the sun is low.

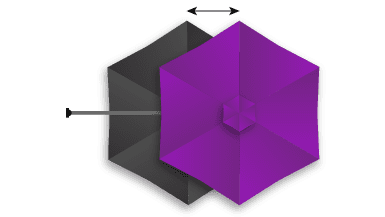

Extends
Away from the wall.

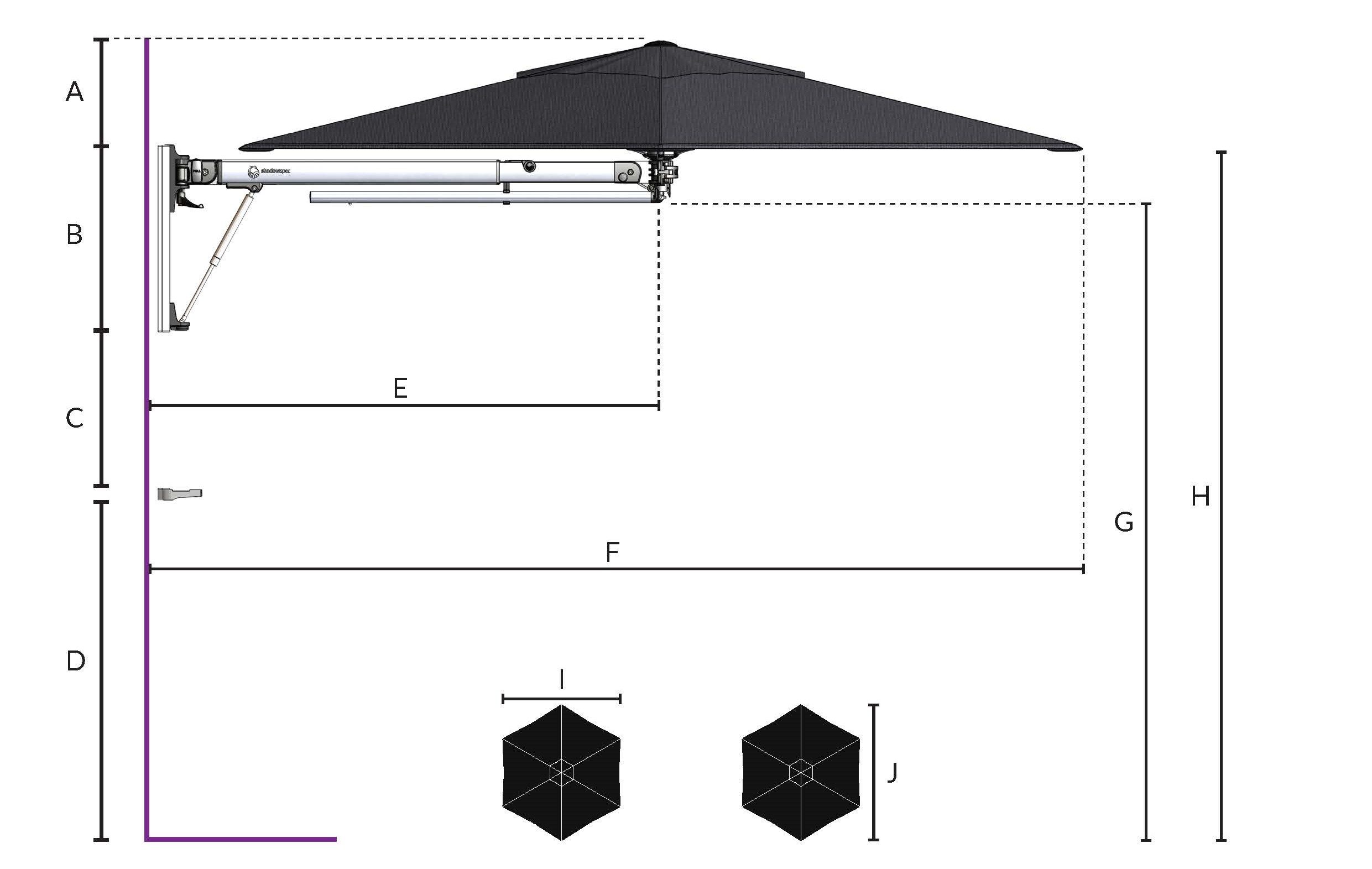

| 2.7m | Full Extension | ||
| A | Canopy height when deployed | 295mm | |
| B | Wall Bracket length | 526mm | |
| C | Space from Wall Bracket to Wall Clip | 441mm | |
| D | Gap from Wall Clip to ground (recommended distance) | 1209mm | |
| E | Wall to centre hub distance (456mm Shadowreach adjustment) | 1419mm | 1875mm |
| F | Wall to outer canopy edge (456mm Shadowreach adjustment) | 2609mm | 3065mm |
| G | Ground to Central Hub (recommended distance) | 2014mm | |
| H | Ground to Canopy Edge (recommended distance) | 2166mm | |
| I | Canopy flat-to-flat measurement | 2300mm | |
| J | Canopy point-to-point measurement | 2700mm |
Note: All sizings and conversions are +/- 2.5mm and are subject to change without notice. We recommend commercial installations use
metric measurement for any umbrella spacing to ensure accuracy. The above dimensions make the assumption that you have installed your
umbrella at the recommended installation height on your wall. If you have installed your retreat lower or higher than recommended ,you will
need to add that difference to the above measurements.
New Zealand based manufacturer Shadowspec has been creating superior quality shade umbrellas for over 25 years. Their in-house design team has been redefining outdoor umbrellas by incorporating modern design, materials and concepts to produce a world leading shade umbrellas. Their range includes single and multi-canopy cantilever umbrellas, tilting umbrellas, centre pole umbrellas and wall mounted umbrellas for unique spaces.
Installation
Height and Distance Extended
Installation
Height and Distance Retracted
Opening Diagram
Rotation Arcs

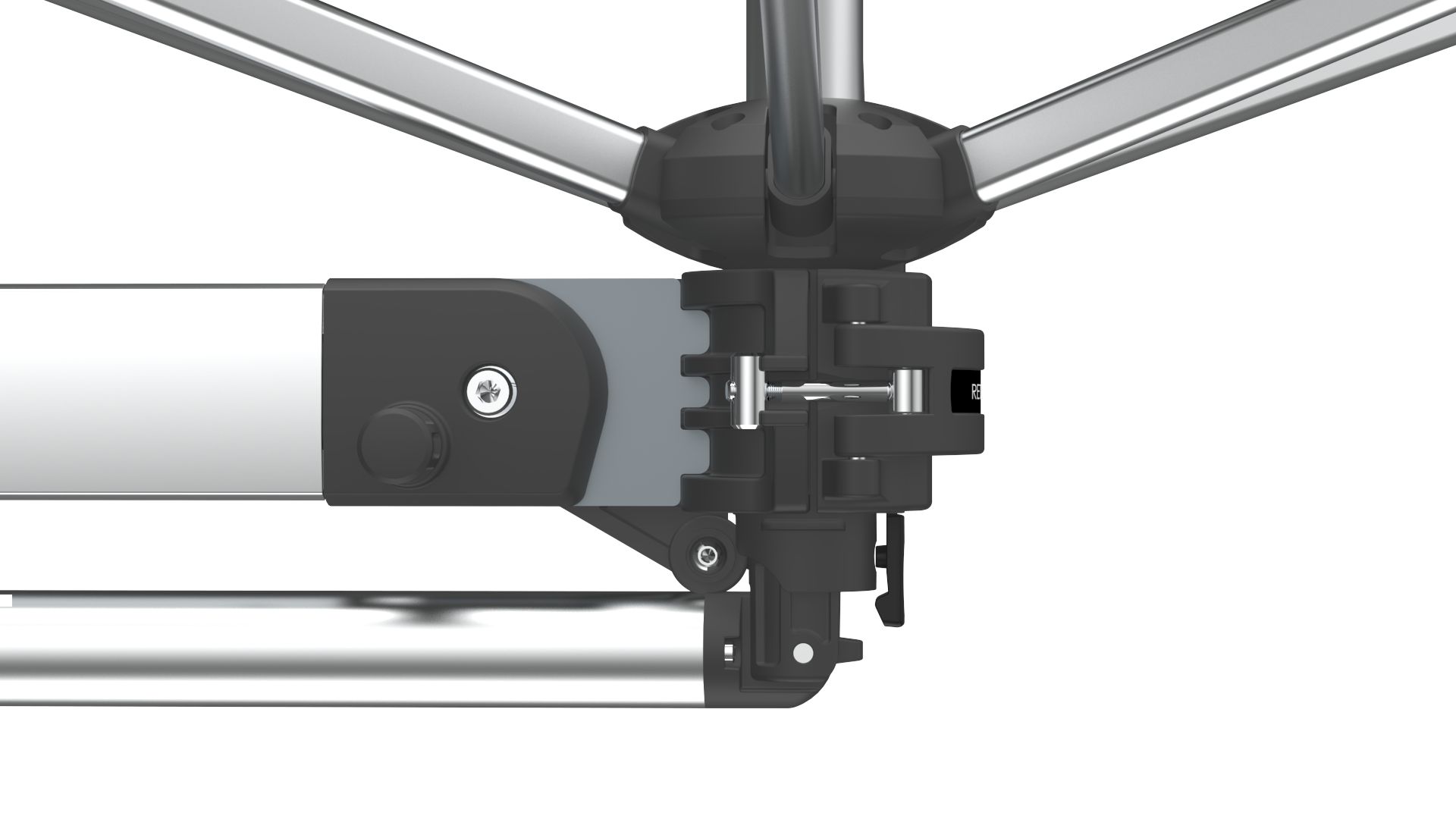

Wall Bracket
Measurements
Installation Guide
Owners Manual
